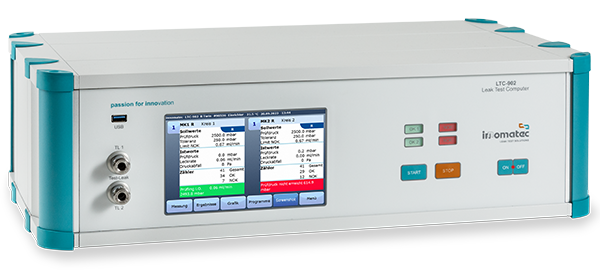

LTC-902
Configurable multi-channel leak test computer
This versatile all-rounder is easy to operate and works quickly, reliably, and with great precision. As a result, the LTC-902 offers flexible application possibilities and thus sets new standards in industrial leak testing and flow measurement. Available in a variety of models, the compact LTC-902 can be easily adapted to individual or industry-specific testing requirements and is suitable for all leak testing methods. Unlike the LTC-802, it can be utilized for single channel applications for high test pressures and/or large volumes, as well as special measurement applications. In addition, special 2- or multi-channel instrument versions are available for autonomous measurement operations.
- Flexible leak testing for a wide range of test methods
- Easy to configure, easy to operate
- Easy integration into your network
- Excellent repeatability
- Single or multi-channel testing
The LTC-902 is a specialist for all cases
The leak test computer has a unique hybrid architecture with multiple interfaces that enables even faster and more reliable measurements. At the same time, it offers outstanding repeatability with optimum ease of use. The LTC-902 is equipped with selected and powerful hardware components. Its ease-of-use is based on familiar, PC-like working standards, allowing for network integration as well as simple database connectivity. In addition, pending test tasks are displayed and managed in a simplified manner.
Learn more about the LTC-902 below or contact us to discuss your leak test application.
Types of Leak Test
The LTC-902 can perform a variety of leak tests using the following test methods:
- Pressure change method (A)
- Pressure differential method (R)
- Pressure increase method (S)
- Volume determination (C)
- Closed component method with pressure change method (DA)
- Closed component method with pressure differential method (DR)
- Mass flow method (M)
- Flow method (Q)
- Back pressure and/or blockage test
- Special measurement method
Key Specifications
The LTC-902 offers the right leak testing solution for any application.
- Evaluation of pressure and/or flow
- Customized sensors and actuators for any type of application.
The main specifications are listed below. For the complete list of specifications, please register to download the LTC-902 Leak Test Computer brochure.
- Test pressure accuracy ± 2 % of control range (other precision on request)
- Test pressure resolution 1 Pa (other precision on request)
- Differential pressure sensor resolution 0.01 pa (other precision on request)
- Flow accuracy ± 2 % of measuring range (other precision on request)
- Pressure ranges 2 mbar absolute to 500 bar relative
- Flow ranges 1 ml/min to 450 l/min (more on request)
- Volume ranges 1 ml to >1,000,000 ml
Leak test with the most connectivity options
The LTC-902 offers multiple options for communication with plant systems. Integration with existing IT infrastructure is easy, and data flow can be structured according to plant policies.
Leak-tight communication protocols
The LTC-902 is a networked leak tester and can communicate over a wide range of network protocols used in the automation industry:
- Digital IO Control
- RS232
- PROFINET
- PROFIBUS
- EtherCAT
- EtherNet/IP
- DeviceNet
- OPC UA
- TCP/IP (RawSockets, ZMQ, activeMQ, etc.)
Custom protocols can be implemented quickly by innomatec's team. Results, diagrams and pressure curves are available via WindowsShares or FTP.
Supports common peripherals
The LTC-902's full PC functionality allows it to connect and exchange data with typical peripherals, such as:
- Barcode scanners
- Part marking systems
- Printers
- RFID readers
Testing made better and easier

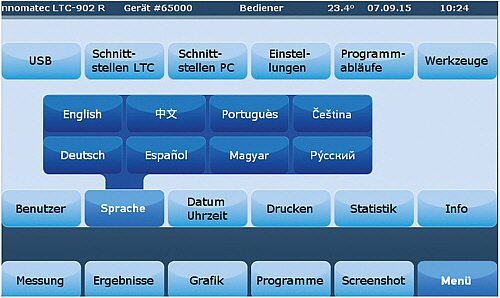

Language selection menu

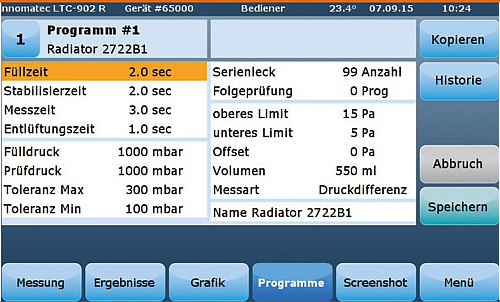

Parameter entry menu

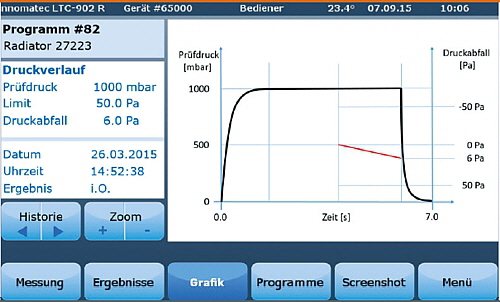

Graphics menu

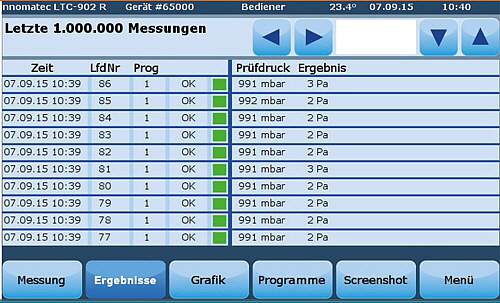

Measuring results menu

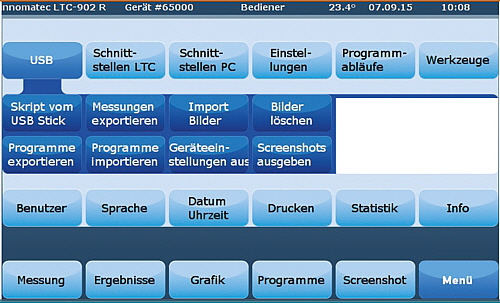

USB functions menu

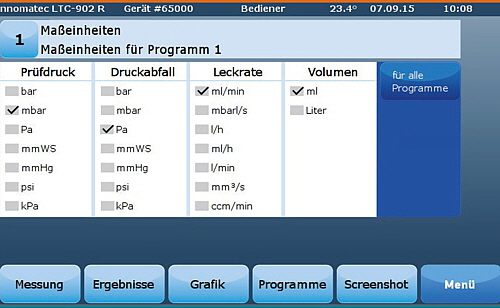

Measuring units selection
- Resistive touchscreen provides easy controlling with your fingers, even with gloves
- Wireless mouse operation
- Control via smartphone / tablet (using browser and WiFi)
The menu navigation meets the latest ergonomic requirements and can be controlled easily and intuitively.
Do you need a single channel leak tester?
If you only need one channel for your application, consider the LTC-802, which has many of the same features as the LTC-902.
